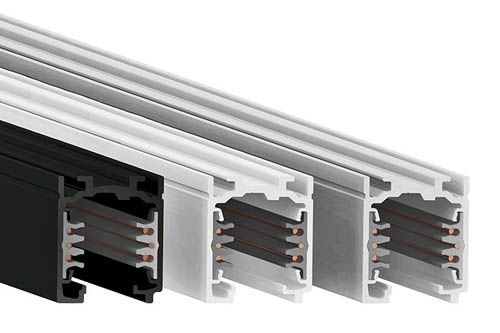

TRA – STANDARD TRACK
PRODUCT FEATURES:
Standard truck system for quick and tool-less installation of luminaires and track projectors. This track supplies power for all luminaires in line. Possibility of changing connected appliances on any point of the line!
| TENSION | 220-240V – 50/60 Hz |
| HOUSING | aluminum |
| CONNECTOR TYPE | TRACK |
| INSTALLATION | suspended |
| COLOR | black / white |
| IP GRADE | IP 20 |
| TEMPERATURE | -20°C … +35°C |
SYSTEM ADVANTAGES
Ceiling LED lights for retail design in shop centers, art and commercial galleries are introduced by a wide range of LED tracklight systems. LED housings from this family present miscellaneous lighting and technical parameters including numerous CRI factors, beam angles ( reflectors and lenses ), various designs, housing powder printed colors, power systems ( 1 or 3 electrical phase ) and power control systems.
Our LED tracklights are manufactured based on brand name components and customized according to the final investor needs.
WIRING SYSTEM:
| INDEX | LENGTH | WIRING |
| TRA4 | 1 / 2 / 3 / 4 m | 4-poles / 3-phase |
DIMENSIONS:
| INDEX | LENGTH | WIDTH | HEIGHT |
| TRA4[C]1 | 1000mm | 42mm | 34mm |
| TRA4[C]2 | 2000mm | 42mm | 34mm |
| TRA4[C]3 | 3000mm | 42mm | 34mm |
| TRA4[C]4 | 4000mm | 42mm | 34mm |

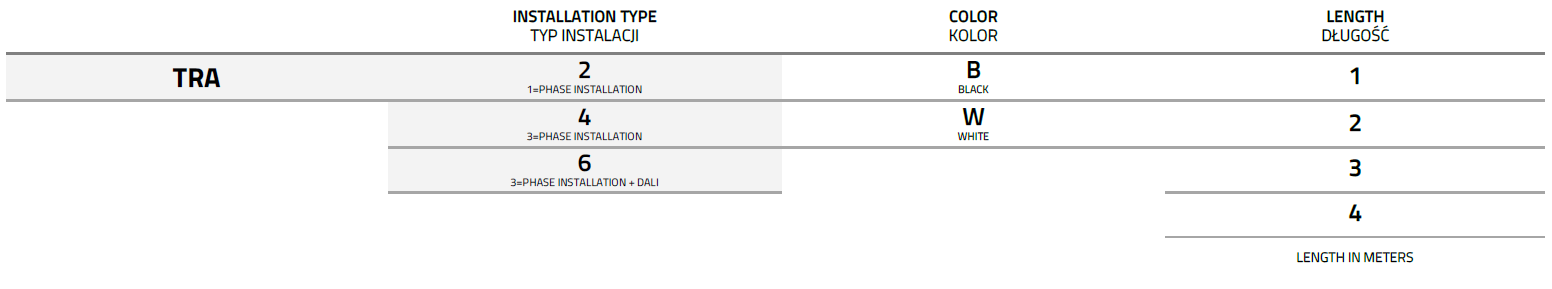

SYSTEM INDEXING
