SWFD – LINEAR LUMINAIRE

_

PRODUCT FEATURES:

Integrated linear LED luminaire, for versatile use, made of a rectangular aluminum profile, where the diffuser is a semi-circular lampshade, with a wide light distribution. For installation as a single fixture, continuous quick assembly line, in the SWE mounting and power rail (busbar) or in the 3-phase Trac bus (e.g. GLOBAL).

POWER 15 – 160 W*
VOLTAGE 220-240 V – 50/60 Hz
POWER SUPPLY OSRAM, PHILIPS, TRIDONIC *
MANAGEMENT ON-OFF / DALI / DIMM*
LIFESPAN L80/B10 50.000h – 100.000h*
HOUSING aluminum
COLOR silver / black / white*
INSTALLATION single / linear / trunking / trac*
IP PROTECTION IP 20 / IP 44*
AMBIENT TEMPERATURE -25° … +35° or -40° … +65°*

Download

_

* Parameters depending on the luminaire configuration

** Detailed luminaire card available after specifying the configuration and parameters

***CE and RoHS declaration of conformity and certificates, available on request

**** IP above 20, only after mounting covers or in a rail

LUMINAIRE DATA:

COLOUR OF LIGHT 3200 / 4000 / 5200 / 5700 / 6500 / SP K*
BEAM ANGLE 30°x90° / 60°x90° / 90°x100° / 70° / 90° / LA / LAA *
LUMINOUS FLUX 2600 – 26000 lm*
CRI FACTOR Ra >80 / Ra >90*
MACADAM CONSISTENCY < 3 SDCM
UGR FACTOR < 19 UGR

COLOUR OF LIGHT *:

LIGHT DISTRIBUTION:

SWD-3R (L30x90) Beam Curves
6x9
90x100
70
SWD-3R (L90) Beam Curves
SWD-1R (LA) Beam Curves
SWD-1R (LAA) Beam Curves

ABOUT EUROLINE

One of the key products that are completely designed, patented and manufactured by Euroledlighting is an integrated linear LED system called Euroline.

Euroledlighting linear lighting system has been created, modified and expanded for over 10 years. Today, the system consists of several dozen elements, including over 20 types of profiles, fittings, rails and accessories.

Trunking rails and luminaries that belong to Euroline family are entirely made of aluminum. This system an innovative solution on a global scale – it allows very fast and tool-less installation of luminaries and other lighting system components to the trunking rail. This solution competes with all known trunking rail systems available on the market.

SYSTEM ADVANTAGES

  • Installation of Euroline system does not require any tools; just plug and play!
  • Quick, easy and intuitive installation method that significantly reduces its time and cost
  • System connectors, sockets, and plugs from WAGO
  • Lighting efficiency up to 180lm/W (net)
  • Luminaries customization according to customers needs (full optimization of the project)
  • Full spectrum of light temperature, including w special non-standard colors
  • Variety of installation or powering possibilities
  • Control & management by means of ex. DALI protocol
  • 3 standard housing colors (silver, white, black); non-standard colors – from RAL palette available upon request
IMG_2181

SINGLE UNIT INSTALATIONS

SWD luminaires can be mounted individually as suspended or surface-mounted lamps. The parameters of the fittings are each time fully optimized for the project purposes. This applies to: luminous flux, beam angles, color temperature or color rendering index, management, UGR, and even housing colors.

SWD (Single)
SWD (Linear)

CONTINUOUS LIGHTING LINES

All luminaires from the SWC, SWD, SWG, SWF families can be combined into continuous light lines for quick installation. This solution is most often used in commercial spaces and wherever high light intensity and/or uniformity are required. The cable harness (up to 15 wires) allows, similarly to the bus system, to power any supporting devices (emergency luminaires, sensors, controllers, cameras, etc.). The use of a specially developed main profile with a separate SWG cable chamber for the construction of a modular installation allows for the installation of a telecommunications, signal or control installation. Our linear system is the fastest assembled solution on the market, mainly due to the plug and play assembly solutions, the weight of the system (aluminum), the length of the sections (up to 5.8 m), the variety of accessories and supporting elements. The system is built on over 30 types of aluminum profiles developed from scratch.

TRUNKING RAILS INSTALLATION

Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from Euroline trunking.

SWD (Euroline)

DIMENSIONS:

INDEX LENGTH WIDTH HEIGHT
SWFA[M][C]06… 575mm 48mm 55mm
SWFA[M][C]09… 860mm 48mm 55mm
SWFA[M][C]12… 1145mm 48mm 55mm
SWFA[M][C]14… 1440mm 48mm 55mm
SWFA[M][C]17… 1720mm 48mm 55mm
SWFA[M][C]20… 2002mm 48mm 55mm
SWFA[M][C]23… 2290mm 48mm 55mm
SWFA[M][C]28… 2860mm 48mm 55mm
SWFA[M][C]34… 3435mm 48mm 55mm
SWFA[M][C]40… 4008mm 48mm 55mm

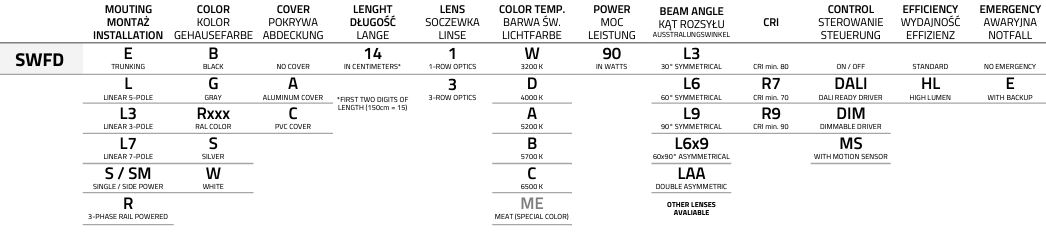

INDEXING SYSTEM
