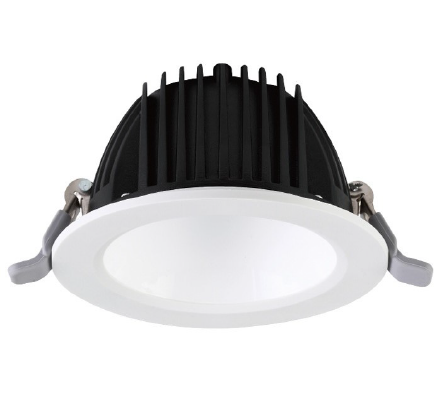

DAKB – LED DOWNLIGHTS

_

PRODUCT FEATURES:

An ultimate downlight dedicated for recessed ceilings. Wide range of lighting parameters and customization available. With optimal heat management and IP44 protection rating and resistance against humidity.

POWER 12 – 42 W
TENSION 220-240 V – 50/60 Hz
DRIVER OSRAM / ELL
MANAGEMENT ON-OFF / DALI
LIFESPAN L80/B10 50.000h
HOUSING aluminum + PC
COLOR white
INSTALLATION ceiling (recessed)
IP PROTECTION IP 44
AMBIENT TEMPERATURE -10° … +40°

Download

_

* CE declaration of conformity and RoHS available upon request

LUMINAIRE DATA:

COLOR TEMPERATURE 3200 / 4000 / 5200 / 5700 / 6500 K
BEAM ANGLE 80° ( opal )
LUMINOUS FLUX 1045 – 5040 lm
CRI FACTOR Ra >80 / Ra >90
MACADAM CONSISTENCY 6 SDCM

LIGHT DISTRIBUTION:

COLOR TEMPERATURE:

DOWNLIGHT ADVENTAGES

  • Variety of housing solutions and colors
  • Luminous efficiency up to 140lm/W
  • Wide selection of optics and mirrors responsible for
  • Light distribution and beam angle
  • Wide range of color temperatures including dedicated colors
IMG_3852

LED DOWNLIGHTS

Recessed mounted LED lights – mostly known as downlights. A wide selection of lighting parameters: beam angle, adjustable beam inclination. All of this allows illuminating every shop, exhibitions space and office.

Variety of CCT bins and CRI factors allows to design every shop or space sales in a simple or sophisticated way.

DIMENSIONS:

INDEX Ø Ø CUT HEIGHT
DAKB12… 130mm 120mm 72mm
DAKB18… 185mm 175mm 90mm
DAKB30… 220mm 210mm 116mm
DAKB Meter

INDEXING SYSTEM
