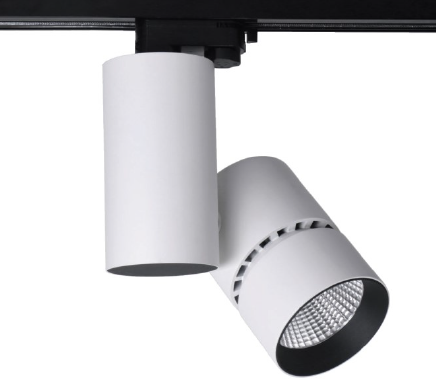

GAKD – LED PROJECTOR
PRODUCT FEATURES:
Minimalistic LED projector. Accent lighting ideal for shop fitting, galleries, hotels, office zones, teleconference zones. Modern design in variety of colors. Wide range of lighting parameters.
| POWER | 33 – 45 W |
| TENSION | 230 V – 50/60 Hz |
| LED | COB |
| MANAGEMENT | ON-OFF |
| LIFESPAN | L80/B10 50.000h |
| HOUSING | aluminum |
| COLOR | black / white / multicolor |
| INSTALLATION | on track |
| IP PROTECTION | IP 40 |
| AMBIENT TEMPERATURE | -20° … +45° |
Download
* CE declaration of conformity and RoHS available upon request
LUMINAIRE DATA:
| COLOR TEMPERATURE | 3000 / 4000 / 6000 K |
| BEAM ANGLE | 15° / 25° / 40° |
| LUMINOUS FLUX | 2450 – 3700 lm |
| CRI FACTOR | Ra >80 / Ra >90 |
| MACADAM CONSISTENCY | < 6 SDCM |
COLOR TEMPERATURE:
LIGHT DISTRIBUTION:
BODY STYLES:
PROJECTOR ADVENTAGES
- Customizable parameters such us: LED colors, their quantity and brightness power
- Projectors can be installed for complete shelves, display cases or stands
- Great marketing supporter; can increase client interest and future sales
LED PROJECTORS
Ceiling LED lights for shopping centers, art commercial galleries are represented by a wide range of LED track light projectors and spotlights. High technical and lighting parameters include different CRI factors, beam angles, mirrors and lenses, various designs, shapes, and colors.
LED housings from this family present miscellaneous lighting and technical parameters including: reflectors and lenses, powder printed colors, power systems ( 1 or 3 electrical phase) and power control systems. Our LED track lights are manufactured based on brand name components and customized according to the final investor needs.

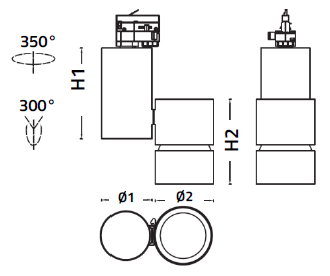

DIMENSIONS:
| INDEX | H1 | H2 | D1 |
D2 |
| GAKD[C]… | 155mm | 145mm | 84.5mm | 100mm |
INDEXING SYSTEM
