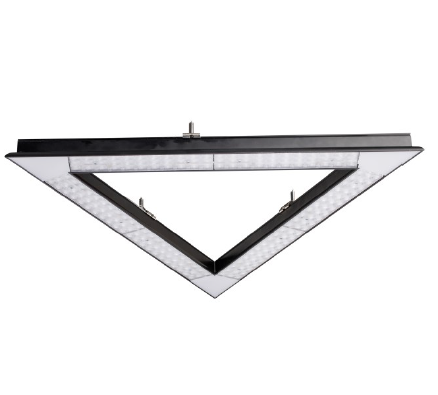

SWDDT – GEOMETRIC FIGURE (TRIANGLE)

_

PRODUCT FEATURES:

Integrated LED luminaire made of aluminum, based on optical diffuser arranged in three rows directly at LED modules. Triangle construction allows achieving great visual effects of the highest aesthetic values. Alternative to linear installations.

POWER 60 – 160 W
TENSION 220-240 V – 50/60 Hz
POWER SUPPLY OSRAM
MANAGEMENT ON-OFF / DALI / DIMM
LIFESPAN L80/B50 70.000h – L80/B10 50.000h
HOUSING aluminum
COLOR silver / black / white
INSTALLATION single
IP PROTECTION IP 20
AMBIENT TEMPERATURE -25° … +35°

Download

_

* CE declaration of conformity and RoHS available upon request

LUMINAIRE DATA:

COLOR TEMPERATURE 3200 / 4000 / 5200 / 5700 / 6500 K
BEAM ANGLE 30° / 60° / 90° / 30×90° / LA / LAA
LUMINOUS FLUX 3000 – 24800 lm
CRI FACTOR Ra >80 / Ra >90
MACADAM CONSISTENCY < 3 SDCM
UGR FACTOR < 22 UGR

COLOR TEMPERATURE:

LIGHT DISTRIBUTION:

MAIN ADVENTAGES

  • Lighting efficiency up to 170 lm/W
  • Aluminum housing
  • Many variants of the geometric shapes
  • Compatible with standard 3-phase track rails (for SWDDR)
  • Quick and tool-less installation
  • Wide choice of optical diffusers (variety of beam angles)
  • Wide selection of color temperature (including special and dedicated colors)
Business Professional Person Presenting to a Group of People. Discussion.
IMG_4593

GEOMETRY & LUMINAIRES

This group of luminaries not only allows illuminating the space from a technical point of view but also helps to achieve great visual effects of the highest aesthetic values. These LED fixtures are a good alternative to lighting installations built from standard light lines or single light points.

SWD luminaires can be assembled into geometrical shapes to get unique effect. Luminaire dimensions and design are each time consulted with the customer The length of the sides of the luminaires are the multiplication of LED optical module.

DIMENSIONS:

INDEX LENGTH WIDTH HEIGHT
SWDDT[C]3… 980mm 80mm 47mm
SWDDT[C]4… 1270mm 80mm 47mm
SWDDT[C]5… 1560mm 80mm 47mm
SWDDT[C]10… 2480mm 80mm 47mm

INDEXING SYSTEM

EXTRAS
