SWDM – LINEAR LUMINAIRE (MODULAR)

_

PRODUCT FEATURES:

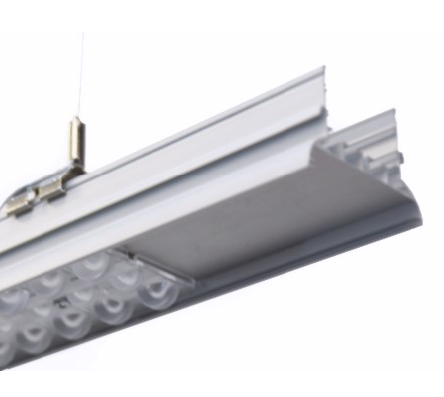

Luminaires for installation as a continuous quick assembly line. A modular luminaire is a solution developed by Euroledlighting, in which there is a gap between individual lenses or a set of lenses (e.g. 1, 2). This is an economical solution in which the „demand” for the light flux per meter of light line is lower and the use of fewer LED modules and lenses allows for lower installation costs. The modular luminaire is each time configured and manufactured to suit a specific project and the customer’s requirements. The frame can be made with 1- or 3-row lenses, with tightness classes up to IP54. The cable harness (up to 13 wires) allows, similarly to the bus system, to power any supporting devices (emergency luminaires, sensors, controllers, cameras, etc.). The use of a specially developed main profile with a separate SWG cable chamber for the construction of a modular installation allows for the installation of telecommunications, signal and control installations. The modular fixtures, like all ELL linear fixtures, are made of aluminum. A wide selection of optics with different distribution angles (light bodies) allows for optimal adjustment of the direction of light incidence. A luminaire for versatile use. The parameters of the luminaires range from: length 0.58-5.8 m (every 0.58 m), light flux up to 24,000 lm, efficiency up to 190 lm/W. Depending on the configuration and equipment of the luminaire, a possible service life of up to 100,000 hours for L80B10, and operating temperature parameters -40° … +65°. Luminaires configured, equipped and manufactured in accordance with the customer’s guidelines and the needs of a specific project (installation).

POWER 20 – 160 W
VOLTAGE 220-240 V – 50/60 Hz
POWER SUPPLY OSRAM, PHILIPS, TRIDONIC *
MANAGEMENT ON-OFF / DALI / DIMM*
LIFESPAN L80/B10 50.000 to 100.000 h. *
HOUSING aluminum
COLOR silver / black / white*
INSTALLATION single / linear / trunking
IP PROTECTION IP 20 / IP 44
AMBIENT TEMPERATURE -25° … +35° or-40° … +65°

Download

_

* Parameters depending on the luminaire configuration

** Detailed luminaire card available after specifying the configuration and parameters

***CE and RoHS declaration of conformity and certificates, available on request

**** IP above 20, only after mounting covers or in a rail

LUMINAIRE DATA:

COLOR TEMPERATURE 3200 / 4000 / 5200 / 5700 / 6500 K *
BEAM ANGLE 30° / 60° / 90° / 30×90° / LA / LAA *
LUMINOUS FLUX 3600 – 25500 lm *
CRI FACTOR Ra >80 / Ra >90 *
MACADAM CONSISTENCY < 3 SDCM
UGR FACTOR < 22 UGR

COLOUR OF LIGHT *:

LIGHT DISTRIBUTION:

ABOUT EUROLINE

One of the key products that are completely designed, patented and manufactured by Euroledlighting is an integrated linear LED system called Euroline.

Euroledlighting linear lighting system has been created, modified and expanded for over 10 years. Today, the system consists of several dozen elements, including over 20 types of profiles, fittings, rails and accessories.

Trunking rails and luminaries that belong to Euroline family are entirely made of aluminum. This system an innovative solution on a global scale – it allows very fast and tool-less installation of luminaries and other lighting system components to the trunking rail. This solution competes with all known trunking rail systems available on the market.

SYSTEM ADVANTAGES

  • Installation of Euroline system does not require any tools; just plug and play!
  • Quick, easy and intuitive installation method that significantly reduces its time and cost
  • System connectors, sockets, and plugs from WAGO
  • Lighting efficiency up to 180lm/W (net)
  • Luminaries customization according to customers needs (full optimization of the project)
  • Full spectrum of light temperature, including w special non-standard colors
  • Variety of installation or powering possibilities
  • Control & management by means of ex. DALI protocol
  • 3 standard housing colors (silver, white, black); non-standard colors – from RAL palette available upon request
IMG_2181
modul

MODULAR INSTALLATION

The modular system is a solution that combines a lighting fixtures with a rail.
The lighting fitting is built on an aluminum profile which is also a trunking route for cables. It is an ideal solution, e.g. in lighting of multi-level rack buildings and wherever a rail solution cannot be used or is too expensive. The modular system eliminates the need for laying cable trays, boxes, pipes or other mounting accessories. Modules allow quick construction of a complete lighting (including emergency) and additional control installations (e.g. motion sensors). The modular solution also allows you to move the installation, if necessary, without losing materials.

DIMENSIONS:

INDEX LENGTH WIDTH HEIGHT
SWDM[M][C]15 1500mm 68mm 48mm
SWDM[M][C]20 2000mm 68mm 48mm
SWDM[M][C]25 2500mm 68mm 48mm
SWDM[M][C]30 3000mm 68mm 48mm
SWDM[M][C]35 3500mm 68mm 48mm
SWDM[M][C]40 4000mm 68mm 48mm

INDEXING SYSTEM
