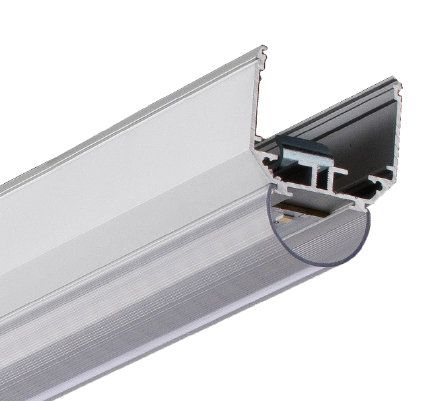

SWC – LINEAR LUMINAIRE

_

PRODUCT FEATURES:

Integrated LED luminaries dedicated for selling zones, warehouses (ideal for multilevel warehouses), production halls. Surface-mounted or suspended. Light construction is ideal for recessed ceilings. Ideal as a fixture for LED retrofit tubes. Luminaries form this family can be used to build a light line, but they can be also installed separately.

POWER15 – 100 W
TENSION220-240 V – 50/60 Hz
POWER SUPPLYOSRAM
MANAGEMENTON-OFF / DALI / DIMM
LIFESPANL80/B10 50.000h
HOUSINGaluminum
COLORsilver
INSTALLATIONsingle / linear
IP PROTECTIONIP 20 / IP 44
AMBIENT TEMPERATURE-25° … +35°

Download

_

* CE declaration of conformity and RoHS available upon request

** IP20 for luminaires opened from top / IP44 for luminaires closed from top by the cover

LUMINAIRE DATA:

COLOR TEMPERATURE3200 / 4000 / 5200 / 5700 / 6500 K
BEAM ANGLE110°
DIFFUSERprismatic / opal / transparent
LUMINOUS FLUX1950 – 13000 lm
CRI FACTORRa >80 / Ra >90
MACADAM CONSISTENCY3 SDCM
UGR FACTOR< 22 UGR

COLOR TEMPERATURE:

LIGHT DISTRIBUTION:

SYSTEM ADVENTAGES

  • Wide selection of variants ant their parameters
  • Slim design aluminum body
  • Possible installation as a single lamp or as a light line
  • Can be used with prefabricated modular systems
  • Super quick, tool-less installation
  • Wide range of color temperature (dedicated colors such us: meat, bread etc.)
IMG_3785

SINGLE UNIT INSTALATIONS

SWC luminaires can be mounted individually as suspended or surface-mounted lamps. The parameters of the fittings are each time fully optimized for the project purposes. This applies to: luminous flux, diffuser type, color temperature or color rendering index, management, and of course UGR factor.

IMG_8587
IMG_2177

CONTINUOUS LIGHTING LINES

SWC luminaires can be combined into continuous lighting lines. It is the solution most commonly used on commercial spaces. Our linear system is the fastest assembled solution on the market, mainly due to mounting solutions, plug and play, system weight (aluminum), length of sections (up to 3m). The linear system is also characterized by inexpensive electrical connectors or end caps.

DIMENSIONS:

INDEXLENGTHWIDTHHEIGHT
SWC[M]07750mm36mm45mm
SWC[M]151500mm36mm45mm
SWC[M]222200mm36mm45mm
SWC[M]303000mm36mm45mm

INDEXING SYSTEM
