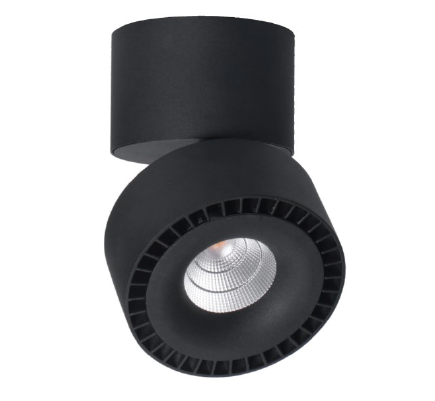

SAX – LED CEILING MINI PROJECTOR

_

PRODUCT FEATURES:

A wide selection of elegant recessed luminaires. Essential lights from this group offer a wide range of ho-using solutions and their colors. You can choose diffusing mirrors that shape the light distribution and the angle of beam. For malls or exhibition areas.

POWER20 – 30 W
TENSION220-240 V – 50/60 Hz
DRIVERBuilt-In
MANAGEMENTON-OFF
LIFESPANL70/B50 40.000h
HOUSINGaluminum
COLORblack / silver / white
INSTALLATIONceiling (surface)
IP PROTECTIONIP 40
AMBIENT TEMPERATURE-20° … +45°

Download

_

* RS – is a type of COB diode characterized by a high CRI> 95 allowing to fully expose the colors of illuminated objects and a light spectrum with proportions of blue and red colors positively influencing plant development.

LUMINAIRE DATA:

COLOR TEMPERATURE3200 / 4000 / 6500 K
BEAM ANGLE25° / 40° / 60°
LUMINOUS FLUX1550 – 2800 lm
CRI FACTORRa >80 / Ra >90 / RS
MACADAM CONSISTENCY< 6 SDCM

LIGHT DISTRIBUTION:

COLOR TEMPERATURE:

HOSING STYLES:

ADVENTAGES

  • Variety of housing solutions and colors
  • Luminous efficiency up to 140lm/W
  • Wide selection of optics and mirrors responsible for
  • Light distribution and beam angle
  • Wide range of color temperatures including dedicated colors
pro-SAN1

LED CEILING LIGHTS

Ceiling mounted LED luminaires – supplementary products in the family of ceiling luminaires. Designed for commercial galleries, exhibition areas.

Euroledlighting offer includes beautiful recessed and ceiling lamps that are an essential supplement to illuminate office areas, commercial buildings, malls or all kind of exhibitions. A wide selection of housing solutions and their colors.

DIMENSIONS:

INDEXH1H2Ø1
ØH
SAX…54 mm 60 mm 84.5 mm100 mm127.5 mm
SAX Meter

INDEXING SYSTEM
