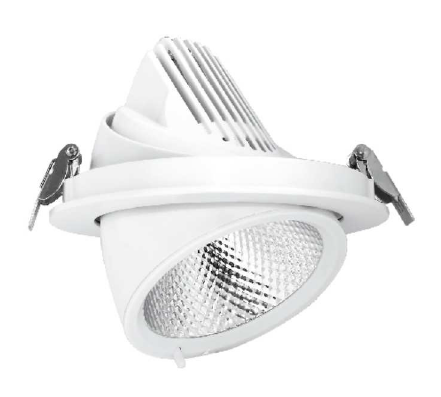

DKA – LED ADJUSTABLE DOWNLIGHT

_

PRODUCT FEATURES:

An ultimate downlight dedicated for recessed ceilings. Wide range of lighting parameters and customization available. All of this allows illuminating every shop, exhibition spaces, offices and even corridors. All flush downlights with adjustable position.

POWER 4 – 32 W
TENSION 220-240 V – 50/60 Hz
DRIVER OSRAM / ELL
MANAGEMENT ON-OFF / DIMM
LIFESPAN L80/B10 50.000h
HOUSING aluminum
COLOR white
INSTALLATION ceiling (recessed / flush)
IP PROTECTION IP 24
AMBIENT TEMPERATURE -20° … +40°

Download

_

* CE declaration of conformity and RoHS available upon request

LUMINAIRE DATA:

COLOR TEMPERATURE 3000 / 4000 / 5000 / 6000 K
BEAM ANGLE 12° / 24° / 40°
LUMINOUS FLUX 2900 – 9900 lm
CRI FACTOR Ra >80 / Ra >90
MACADAM CONSISTENCY < 6 SDCM

LIGHT DISTRIBUTION:

COLOR TEMPERATURE:

DOWNLIGHT ADVENTAGES

  • Variety of housing solutions and colors
  • Luminous efficiency up to 140lm/W
  • Wide selection of optics and mirrors responsible for
  • Light distribution and beam angle
  • Wide range of color temperatures including dedicated colors
IMG_3852

LED DOWNLIGHTS

Recessed mounted LED lights – mostly known as downlights. A wide selection of lighting parameters: beam angle, adjustable beam inclination. All of this allows illuminating every shop, exhibitions space and office.

Variety of CCT bins and CRI factors allows to design every shop or space sales in a simple or sophisticated way.

DIMENSIONS:

INDEX Ø L / H Ø CUT
DKA[W][K][B](1) 155mm 155 / 120mm 148mm
DKA[W][K][B](2) 155mm 350 / 120mm 320 x 148mm
DKA[W][K][B](3) 155mm 590 / 160mm 590 x 160mm

INDEXING SYSTEM
