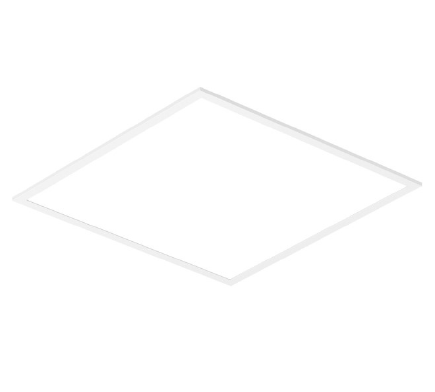

PCA – LED PANEL
_
PRODUCT FEATURES:
LED panel light. Recessed or surface mounted. Perfect for Armstrong ceilings (suspended systems). Dedicated to offices, commercial zones, schools or hospitals, hotels. High lumen version with 120lm/W !
| POWER | 40 W |
| TENSION | 220-240 V – 50/60 Hz |
| DRIVER | OSRAM |
| MANAGEMENT | ON-OFF / DALI / DIMM |
| LIFESPAN | L70/B50 50.000h |
| HOUSING | PMMA + PS + ALU |
| COLOR | white |
| INSTALLATION | surface / recessed / suspended |
| IP PROTECTION | IP 40 |
| AMBIENT TEMPERATURE | -10° … +40° |
Download
_
* CE declaration of conformity and RoHS available upon request
LUMINAIRE DATA:
| COLOR TEMPERATURE | 3000 / 4000 / 6000 K |
| BEAM ANGLE | 90° |
| LUMINOUS FLUX | 4000 lm / 4400 lm (HL) |
| CRI FACTOR | Ra >80 |
| MACADAM CONSISTENCY | < 6 SDCM |
| UGR | <22 / <19 UGR (UHL) |
LIGHT DISTRIBUTION:
COLOR TEMPERATURE:
LED PANEL ADVENTAGES
- UGR from 19 (for PCAUHL panel)
- Option of mounting modules directly in the ceiling, which significantly increases and improves the visual effect and reduces the load on the ceiling structure
- Wide choice of light temperature including Tunable White solution
LED CEILING LIGHTS
LED panel lights are the most popular choice for office lighting. In addition to standard solutions of panel luminaires for flush-mounted as well as suspended, Euroledlighting offer includes innovative LED modules that can be mounted directly in 60×60 panels fillings of the existing ceiling system. This solution allows for a much better visual effect than with standard panel luminaires.
DIMENSIONS:
| INDEX | LENGTH | WIDTH | THICKNESS |
| PCA… | 595 mm | 595 mm | 8mm |
| PCAHL… | 595 mm | 595 mm | 8mm |
| PCAUHL… | 595 mm | 595 mm | 8mm |
INDEXING SYSTEM
