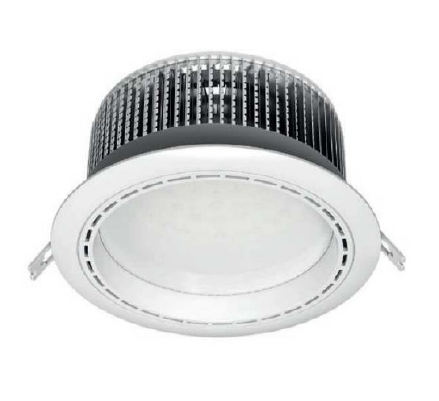

DA – LED DOWNLIGHTS
_
PRODUCT FEATURES:
An ultimate downlight dedicated for recessed ceilings. Wide range of lighting parameters and customization available. All of this allows illuminating every shop, exhibition spaces, offices and even corridors.
| POWER | 7 – 36 W |
| TENSION | 220-240 V – 50/60 Hz |
| DRIVER | OSRAM / ELL |
| MANAGEMENT | ON-OFF / DIMM |
| LIFESPAN | L80/B10 50.000h |
| HOUSING | aluminum + PC |
| COLOR | white |
| INSTALLATION | ceiling (recessed) |
| IP PROTECTION | IP 44 |
| AMBIENT TEMPERATURE | -20° … +45° |
Download
_
* CE declaration of conformity and RoHS available upon request
LUMINAIRE DATA:
| COLOR TEMPERATURE | 3000 / 4000 / 6500 K |
| BEAM ANGLE | 90° |
| LUMINOUS FLUX | 595 – 3240 lm |
| CRI FACTOR | Ra >80 / Ra >90 |
| MACADAM CONSISTENCY | < 3 SDCM |
LIGHT DISTRIBUTION:
COLOR TEMPERATURE:
DOWNLIGHT ADVENTAGES
- Variety of housing solutions and colors
- Luminous efficiency up to 140lm/W
- Wide selection of optics and mirrors responsible for
- Light distribution and beam angle
- Wide range of color temperatures including dedicated colors
LED DOWNLIGHTS
Recessed mounted LED lights – mostly known as downlights. A wide selection of lighting parameters: beam angle, adjustable beam inclination. All of this allows illuminating every shop, exhibitions space and office.
Variety of CCT bins and CRI factors allows to design every shop or space sales in a simple or sophisticated way.
DIMENSIONS:
| INDEX | POWER | DIAMETER | HEIGHT |
| DA7… | 7W | 102mm | 66mm |
| DA15… | 15W | 145mm | 78mm |
| DA24… | 24W | 195mm | 105mm |
| DA36… | 36W | 240mm | 106mm |
INDEXING SYSTEM
